Before you start. The field has two or more zones and a Stable verdict. Draw Zones and Run the Stability Test comes first.
1

Set the rates

On the zones page, under the verdict, is the Rate plan, nitrogen card. Tap Set the rates and enter the product, its nitrogen content in percent, a flat rate for comparison, and a kg N/ha figure for each zone. Then Save.
2

Export for the tractor

On a field with stable zones the button Export for the tractor is on the card. On any other field the card says why it is not.
3

Pick the terminal

Choose ISOXML for John Deere, Fendt, Claas, Kverneland and Amazone terminals; it downloads as a TASKDATA zip. Choose Shapefile for Trimble, Topcon, Ag Leader and any GIS. A CSV with the rates is included with both.

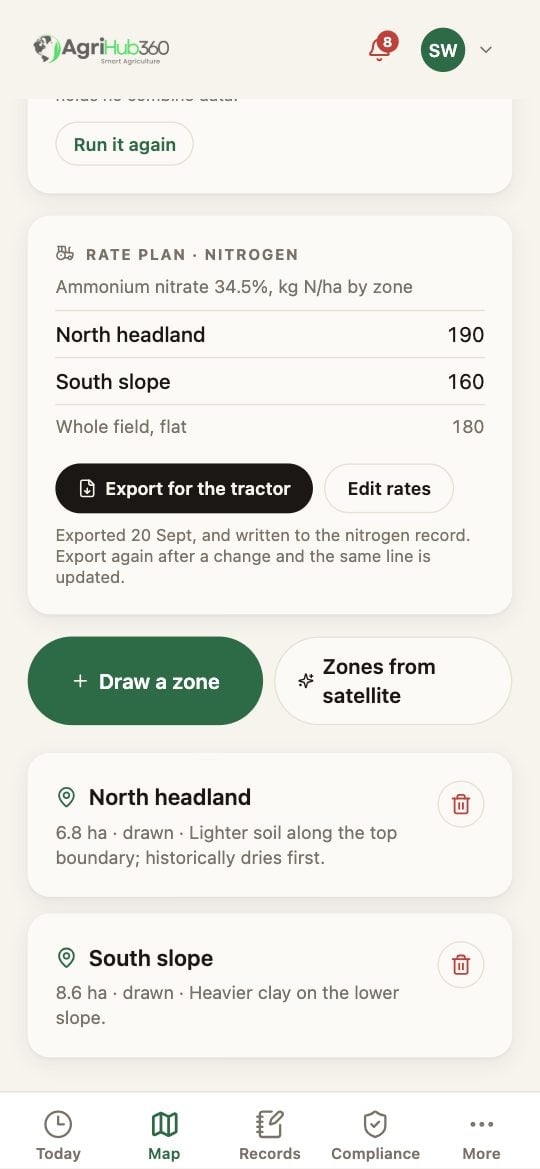

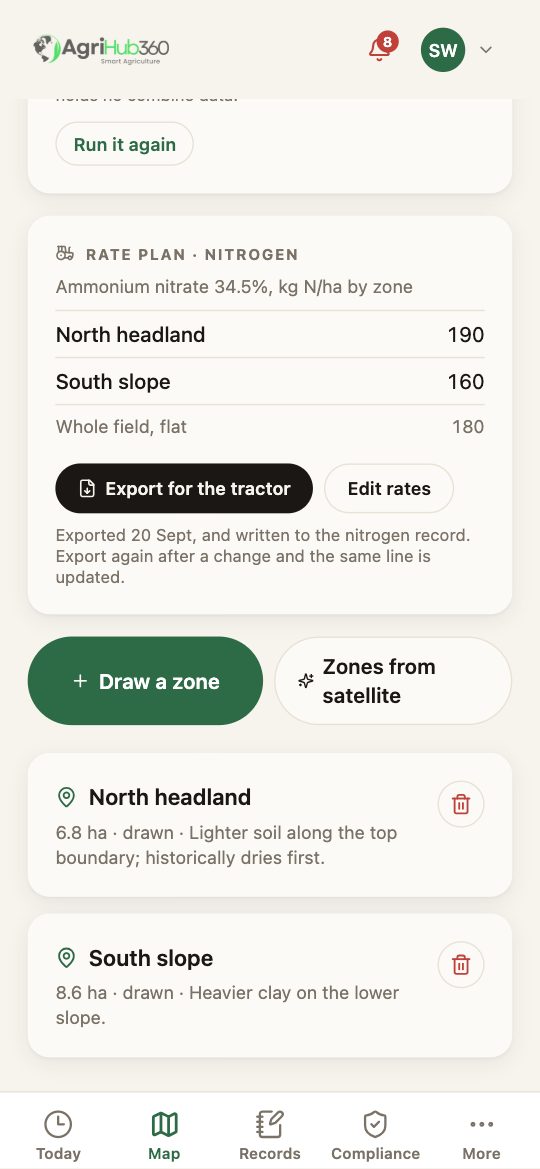

Rate plan, nitrogen: Ammonium nitrate 34.5%, North headland 190, South slope 160, Whole field flat 180, and the buttons Export for the tractor and Edit rates.

The rate plan under the verdict: a rate per zone and the flat rate beside it.

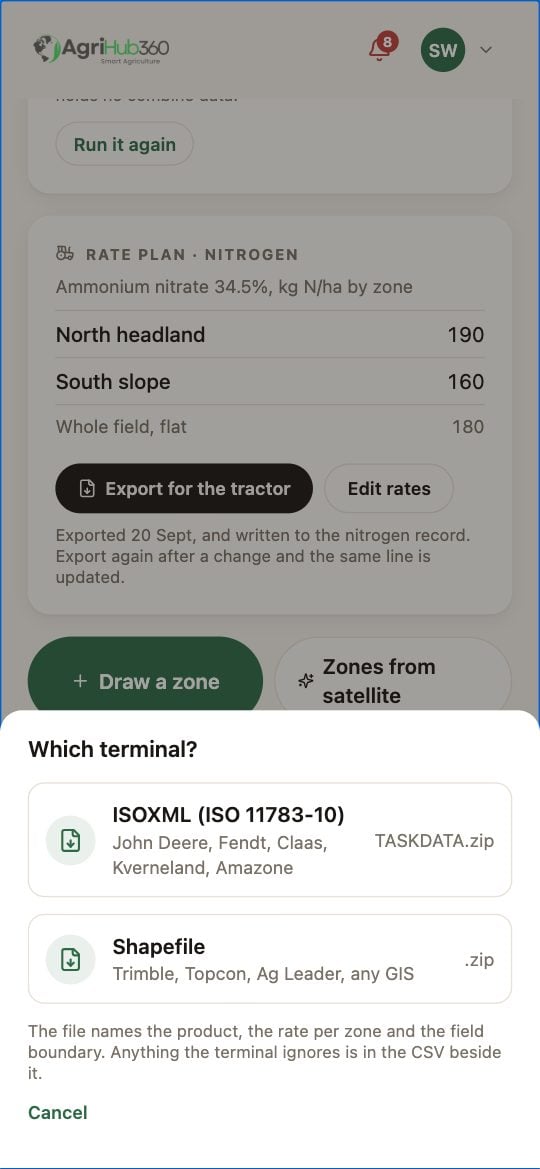

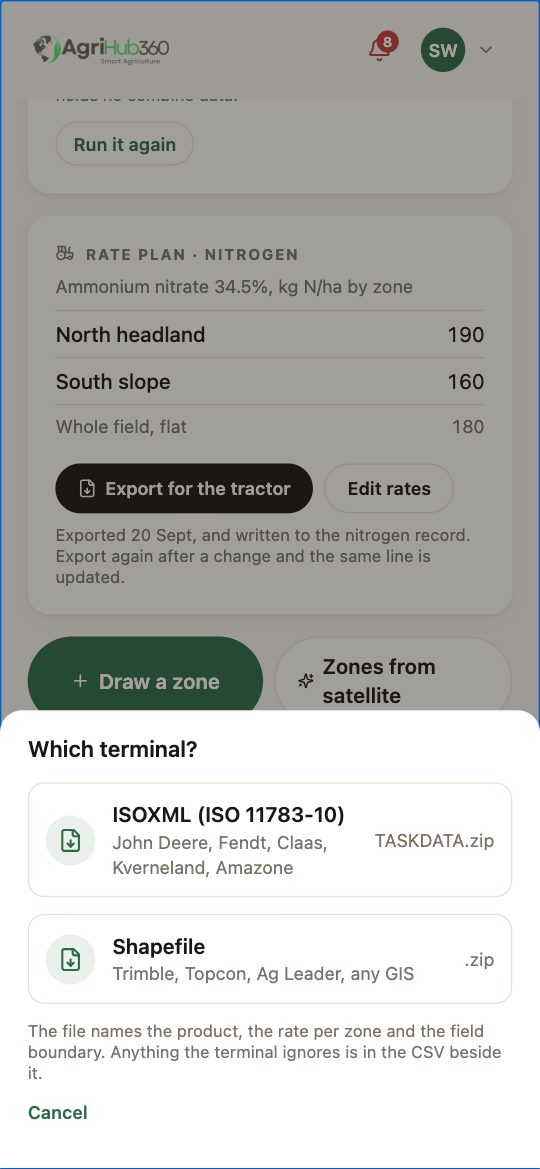

The export sheet: ISOXML (ISO 11783-10) for John Deere, Fendt, Claas, Kverneland, Amazone, and Shapefile for Trimble, Topcon, Ag Leader, any GIS.

Which terminal? ISOXML or a shapefile.

​
What You See Next

The file downloads, and the plan is written to the nitrogen record as one line with the rate by zone, so the N-max check sees it. Export again after a change and the same line is updated, not added to.

​
If It Does Not
