1
More, then Livestock
Above the herds is the Grazing wedge, one bar per field, tallest first. Cover is in kg of dry matter per hectare.
2
Read the two lines
The dark dashed line is the pre-grazing target, 2,800 kg DM/ha. The amber one is the residual, 1,500, the cover to leave when the herd moves off. A bar under the residual goes amber.
3
Read the herds
Each herd’s row shows days on its field. When its field is at the residual the row reads Move soon and the Move button goes solid.

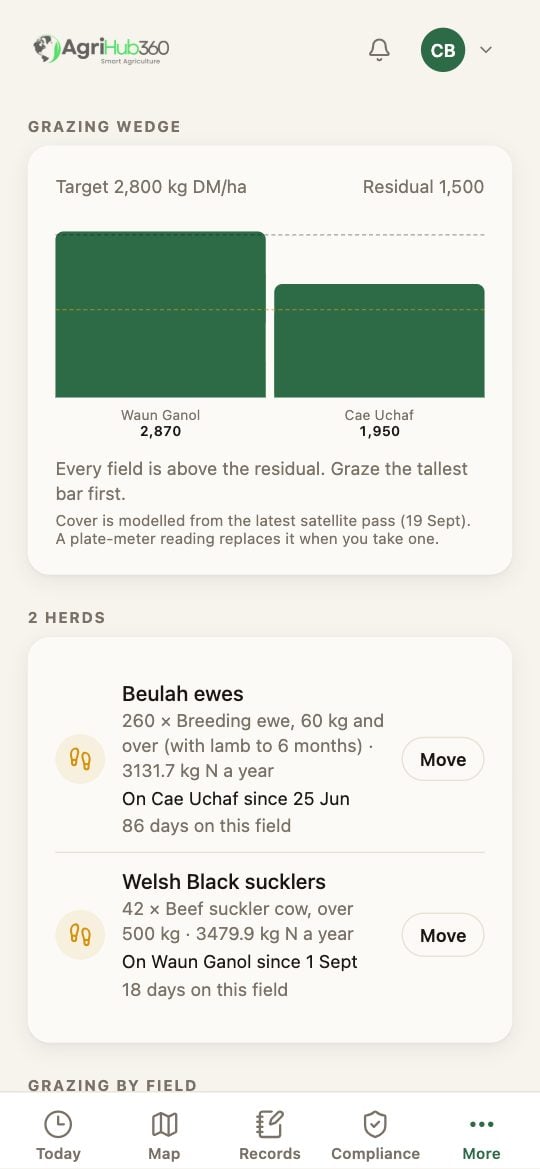

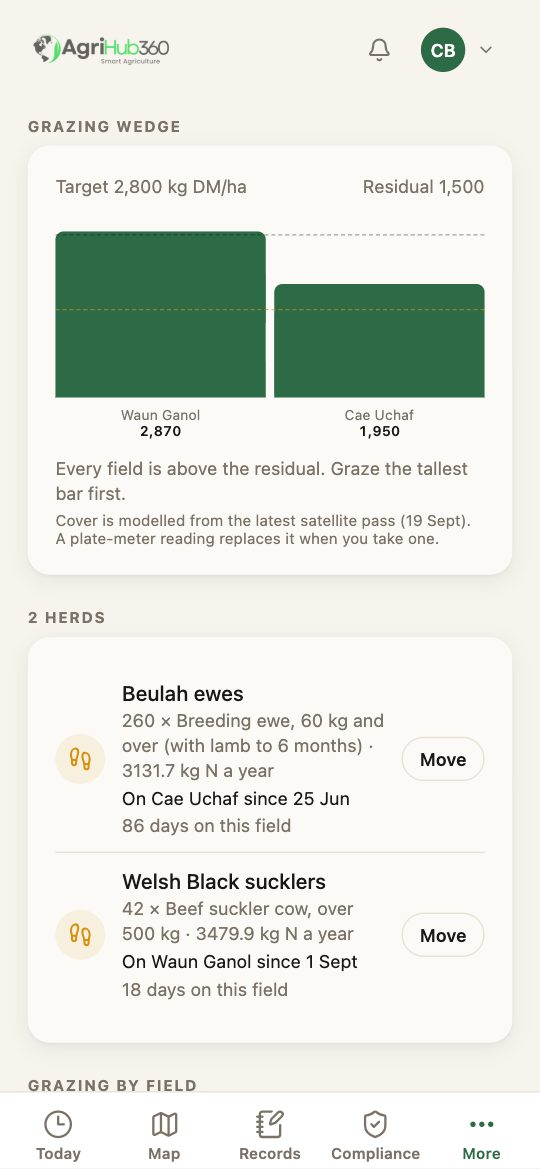

The grazing wedge on Cwm Elan Farm: Waun Ganol above the target, Cae Uchaf above the residual.
What You See Next
Graze the tallest bar first. The caption says where the cover came from, which is the latest satellite pass and its date. A plate-meter reading replaces it when you take one.If It Does Not
Related: Move a Herd, Livestock and the Manure Plan.
